• E4967L WHEEL STUD 13-1107L
1 3

Fortpro

F286678L | E4967L WHEEL STUD 13-1107L

F286678L | E4967L WHEEL STUD 13-1107L

SKU: F286678L

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

$ 2.43 USD
$ 2.43 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

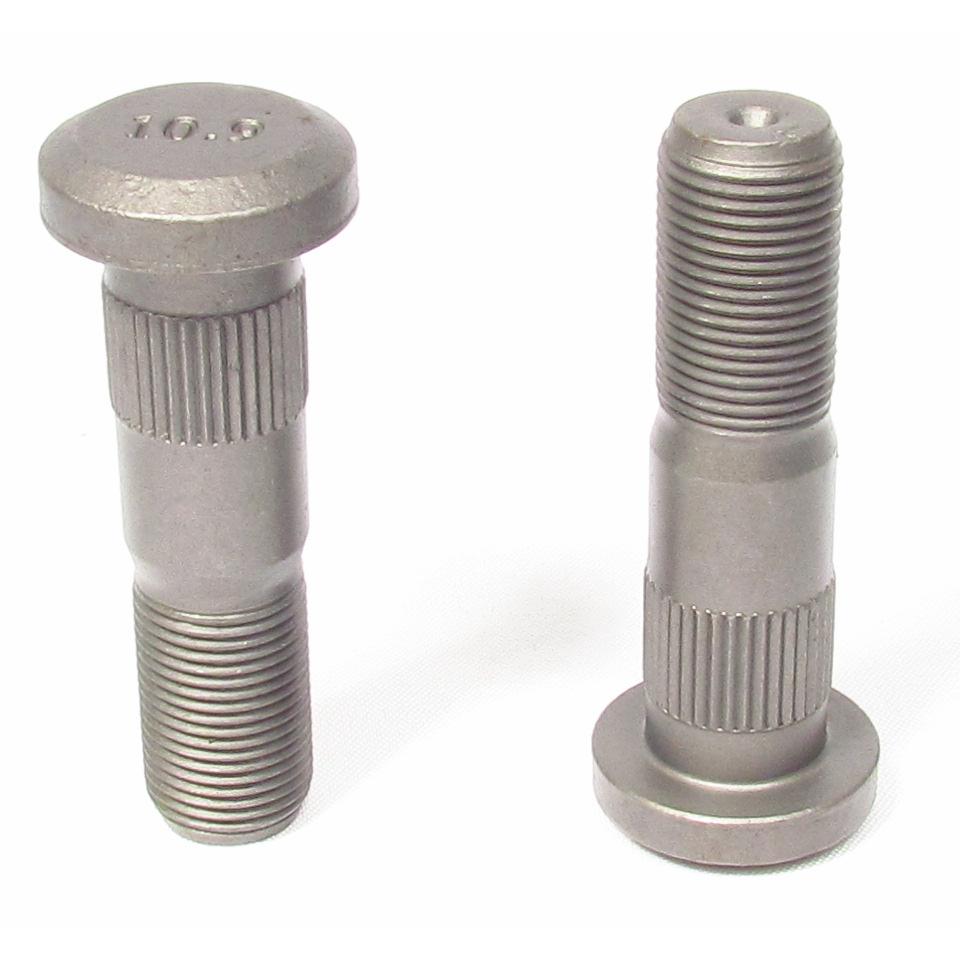

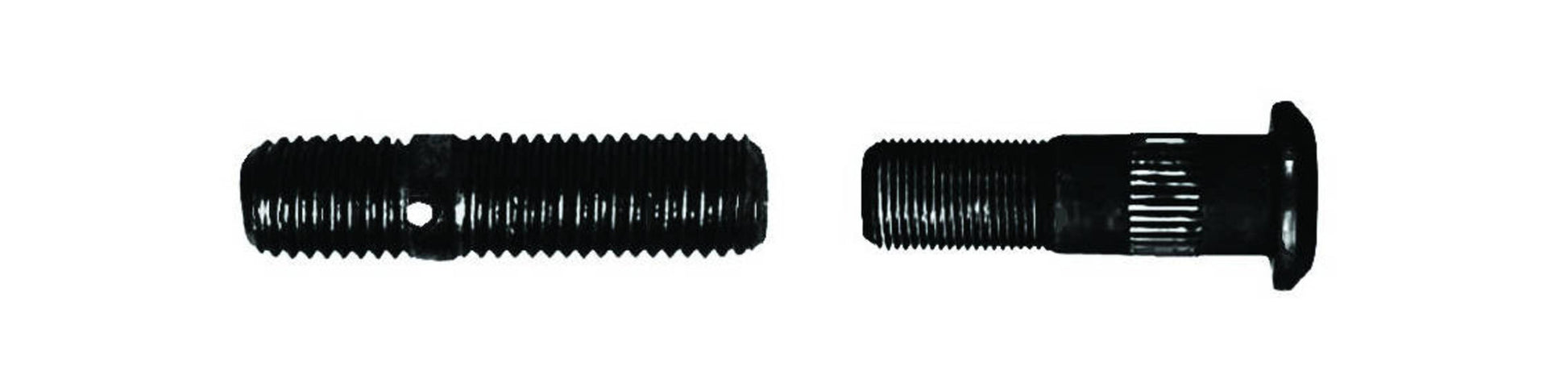

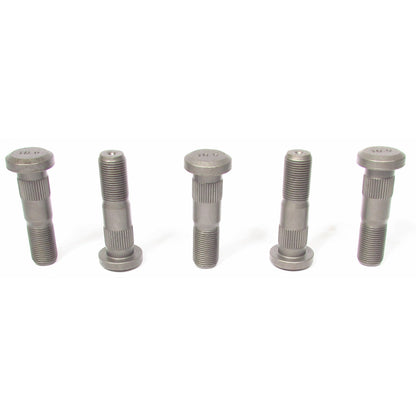

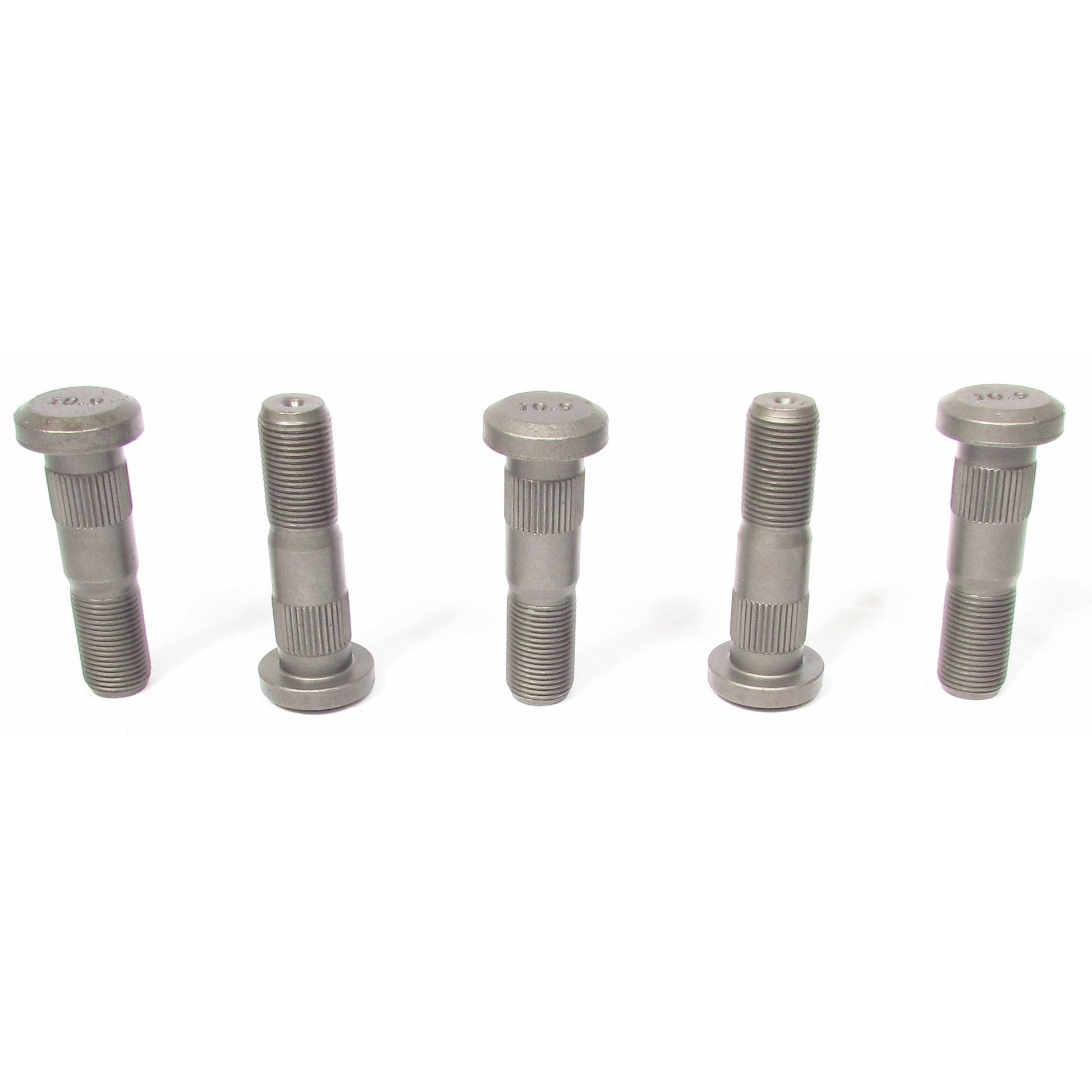

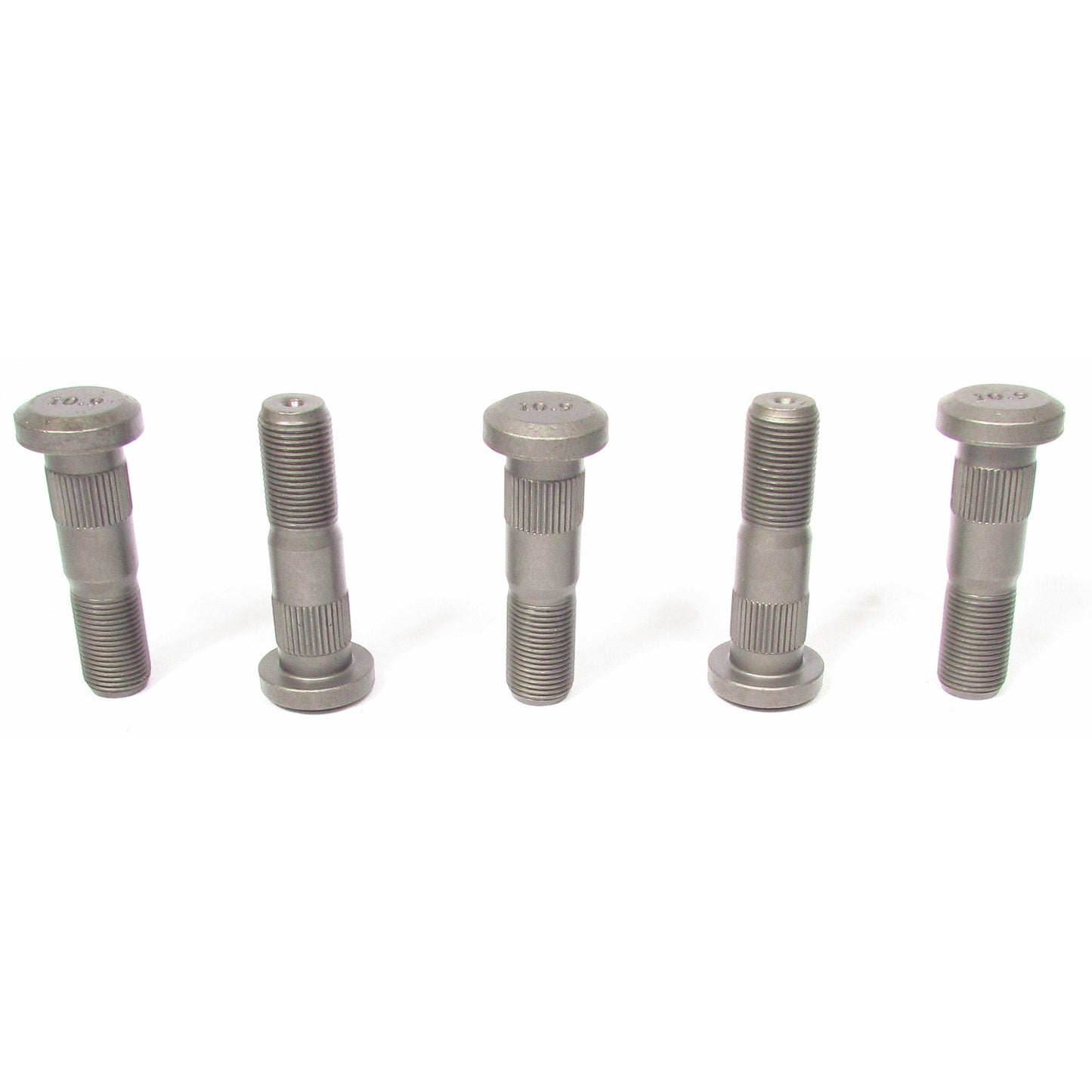

Fortpro Serrated Drive Wheel Studs F286678L are premium quality wheel studs designed for heavy duty applications. These wheel studs offer a secure and reliable hold, especially under high-speed and high-stress conditions. Constructed with heavy-duty materials, Fortpro Serrated Drive Wheel Studs F286678L are renowned for their exceptional durability and strength. Their unique knurled design provides additional grip and increased slip resistance, making them ideal for vehicles that experience extreme forces from acceleration, braking and cornering.

Specification

  • Brand: Fortpro
  • Part Type: Wheel Stud / Left Hand Wheel Stud / Serrated Drive Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E4967L, E-4967-L
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4" - 16 UNF-2A
  • Head Style: Round
  • Thread (A): 3/4" - 16
  • Body Length (E): 1.50"
  • Body Diameter (G): 0.785"
  • Length from Under Head (B): 2 7/8"
  • Head Diameter (F): 1.28"
  • Head Thickness: 0.31"
  • Thread Direction: LH (Left Hand)
  • Threads per Inch: 16
  • Thread Length (C): 0.97"
  • Thread Diameter (H): 0.75"
  • Serration: Serrated
  • Serration Length (D): 0.50"
  • Serration Diameter: 0.820"
  • VMRS: 018-003-009
  • Notes: Stepped Body Diameter
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 2016042L, 2016042LP2
  • BWP: M79
  • Dayton Parts Batco: 131107L
  • Euclid: E4967L, E-4967-L
  • Haldex: 67246
  • National Wheel & Rim: X1824
  • New Life/Fleetcraft: NL5307
  • Meritor: R004967L
  • Transit Parts: TP822L
  • World Truck: 1541704L

Dimensions

Dimension Not Available.
