• E8979L WHEEL STUD 13-1129L
1 3

Fortpro

F286684L | E8979L WHEEL STUD 13-1129L

F286684L | E8979L WHEEL STUD 13-1129L

SKU: F286684L

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

$ 3.40 USD
$ 3.40 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

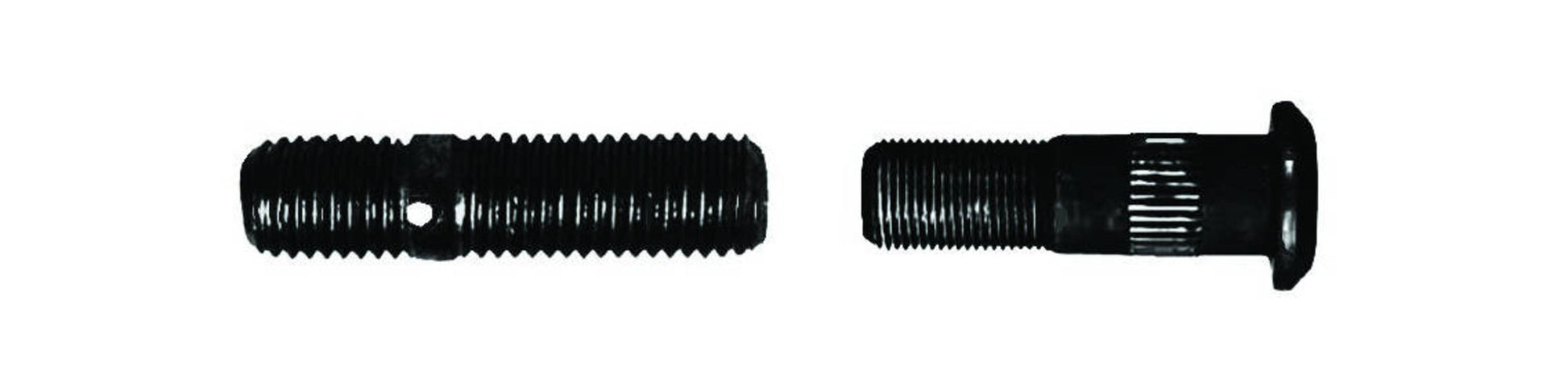

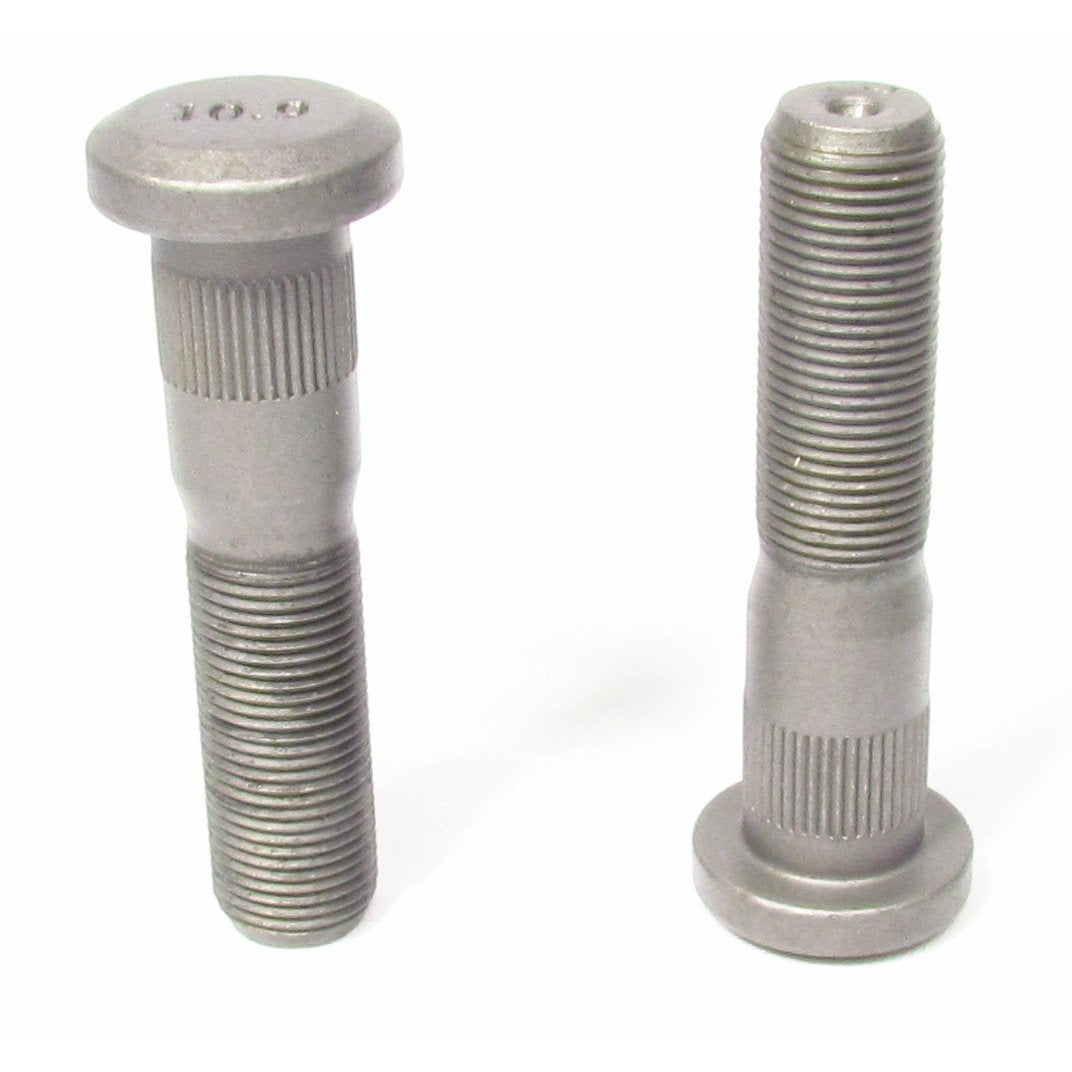

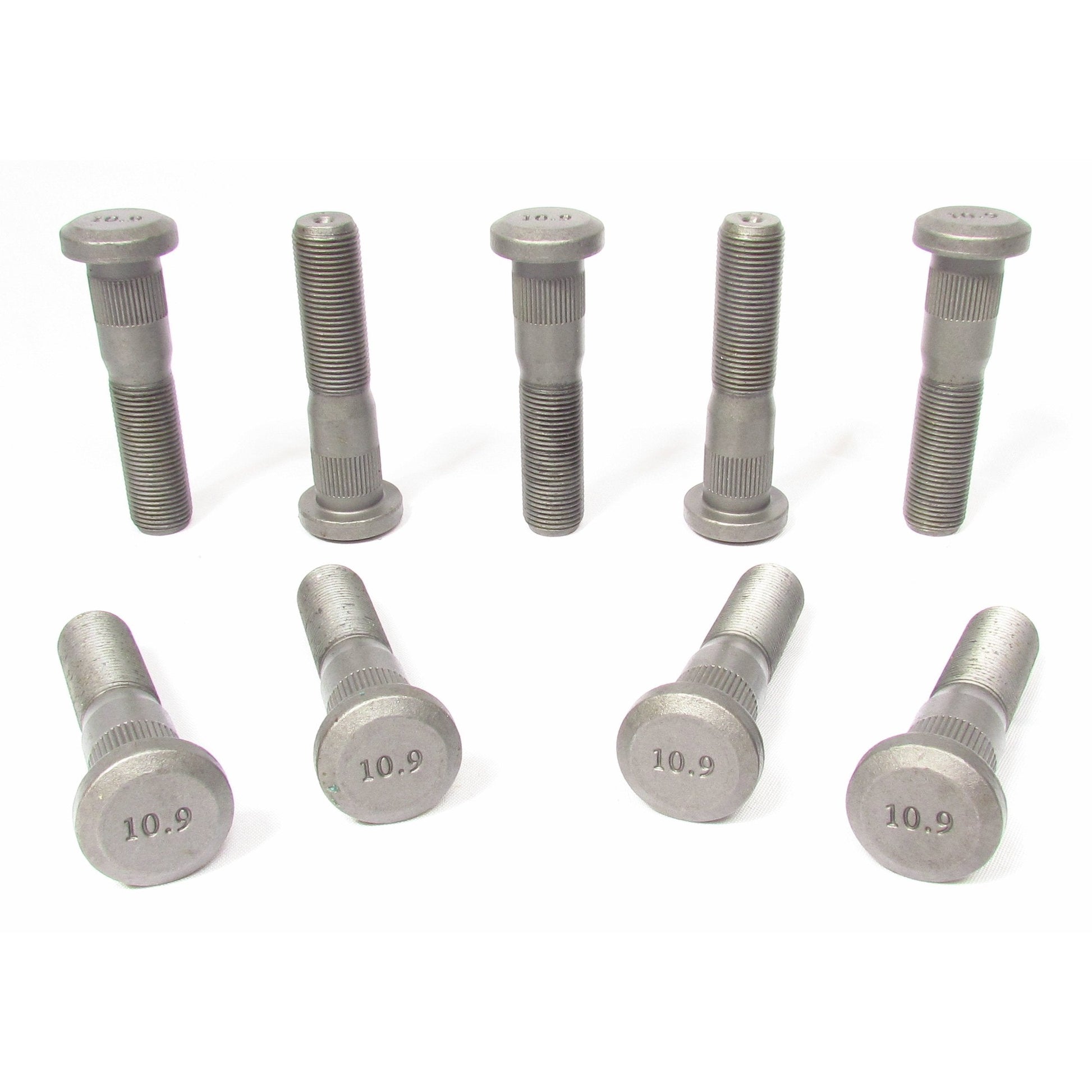

Fortpro Serrated Drive Wheel Studs F286684L is a component that provides additional grip when wheel nuts are tightened. Manufactured with exceptional strength, Fortpro's F286684L Serrated Drive Wheel Studs have a stress value of 1000 MPa, along with a yield point strength of 900 MPa. This robust construction guarantees durability and resistance in demanding conditions, making them an indispensable component for both safety and optimum performance of the wheels.

Specification

  • Brand: Fortpro
  • Part Type: Wheel Stud / Left Hand Wheel Stud / Serrated Drive Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E8979L, E-8979-L
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4-16 UNF-2A
  • Body Length (E): 1.31"
  • Body Diameter (G): 0.785"
  • Length from Under Head (B): 3 11/32"
  • Head Diameter (F): 1.28"
  • Head Style: Round
  • Head Thickness: 0.31"
  • Thread (A): 3/4"-16
  • Thread Diameter (H): 0.75"
  • Thread Direction: LH (Left Hand)
  • Threads per Inch: 16
  • Thread Length (C): 1.62"
  • Serration: Serrated
  • Serration Length (D): 0.50"
  • Serration Diameter: 0.820"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 2016054L, 2016054LP2

Dimensions

Dimension Not Available.
