F286685R | E9010R WHEEL STUD 13-1273R

F286685R | E9010R WHEEL STUD 13-1273R

SKU: F286685R

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

$ 3.83 USD
$ 3.83 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form.
View full details

Fortpro

Product Data Sheet

Description

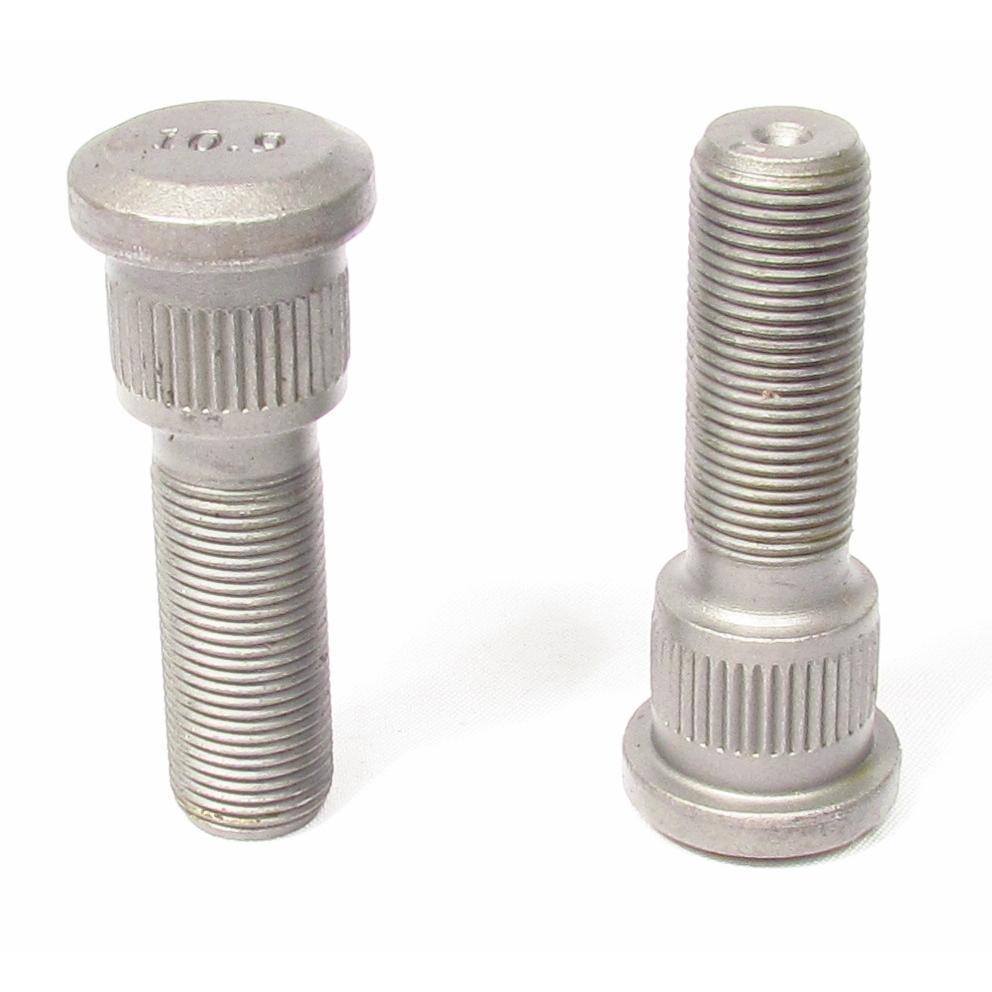

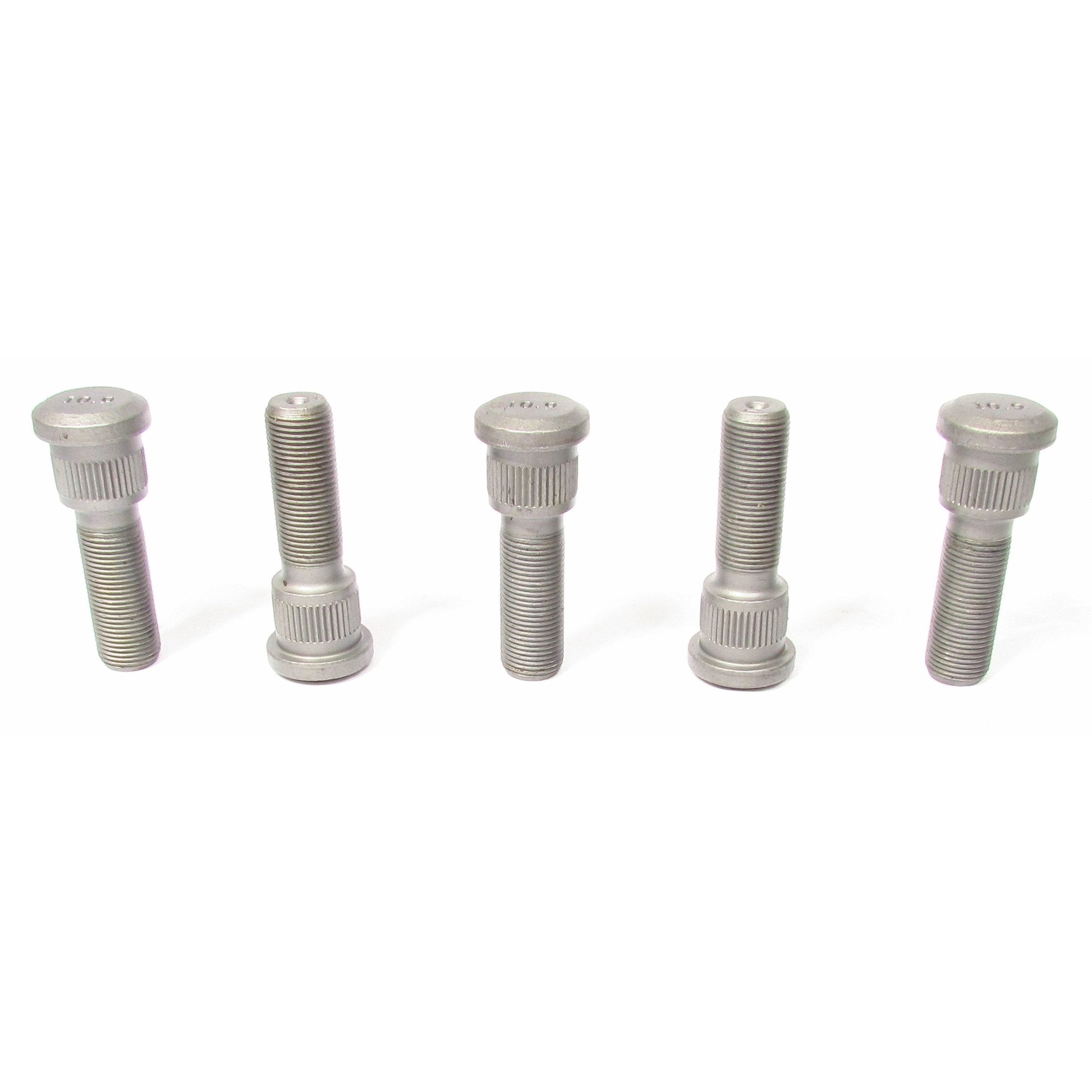

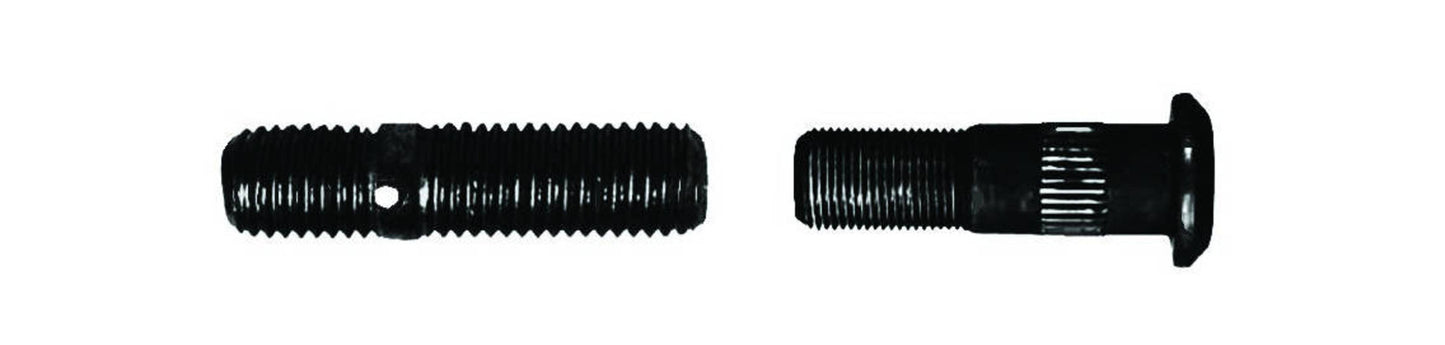

Fortpro 3/4"-16 Serrated Drive Wheel Studs F286685R are serrated wheel studs designed to provide a secure and reliable hold for vehicle wheels. Manufactured from high strength class 10.9 steel, these studs are designed to withstand loads and stresses They feature a 3/4"-16 thread on one end and a knurled section on the other end, allowing for a tight fit into the corresponding holes in the wheel hubs.

Specification

  • Brand: Fortpro
  • Part Type: Wheel Stud / Right Hand Wheel Stud / Serrated Drive Wheel Studs
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E9010R, E-9010-R
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: 3/4-16 UNF-2A
  • Body Length (E): 0.812"
  • Body Diameter (G): 0.975"
  • Length from Under Head (B): 2 27/32"
  • Head Diameter (F): 1.31"
  • Head Style: Round
  • Head Thickness: 0.31"
  • Thread (A): 3/4"-16
  • Thread Diameter (H): 0.75"
  • Thread Direction: RH (Right Hand)
  • Threads per Inch: 16
  • Thread Length (C): 1.18"
  • Serration: Serrated
  • Serration Length (D): 0.357"
  • Serration Diameter: 1.015"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 2016106R, 2016106RWE

Dimensions

Dimension Not Available.
