Fortpro

Product Data Sheet

Description

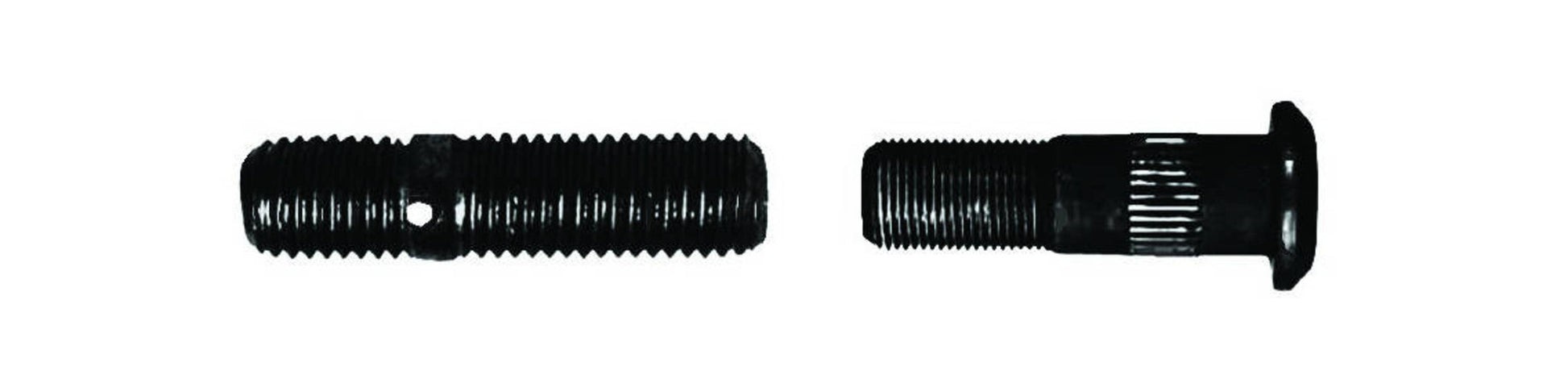

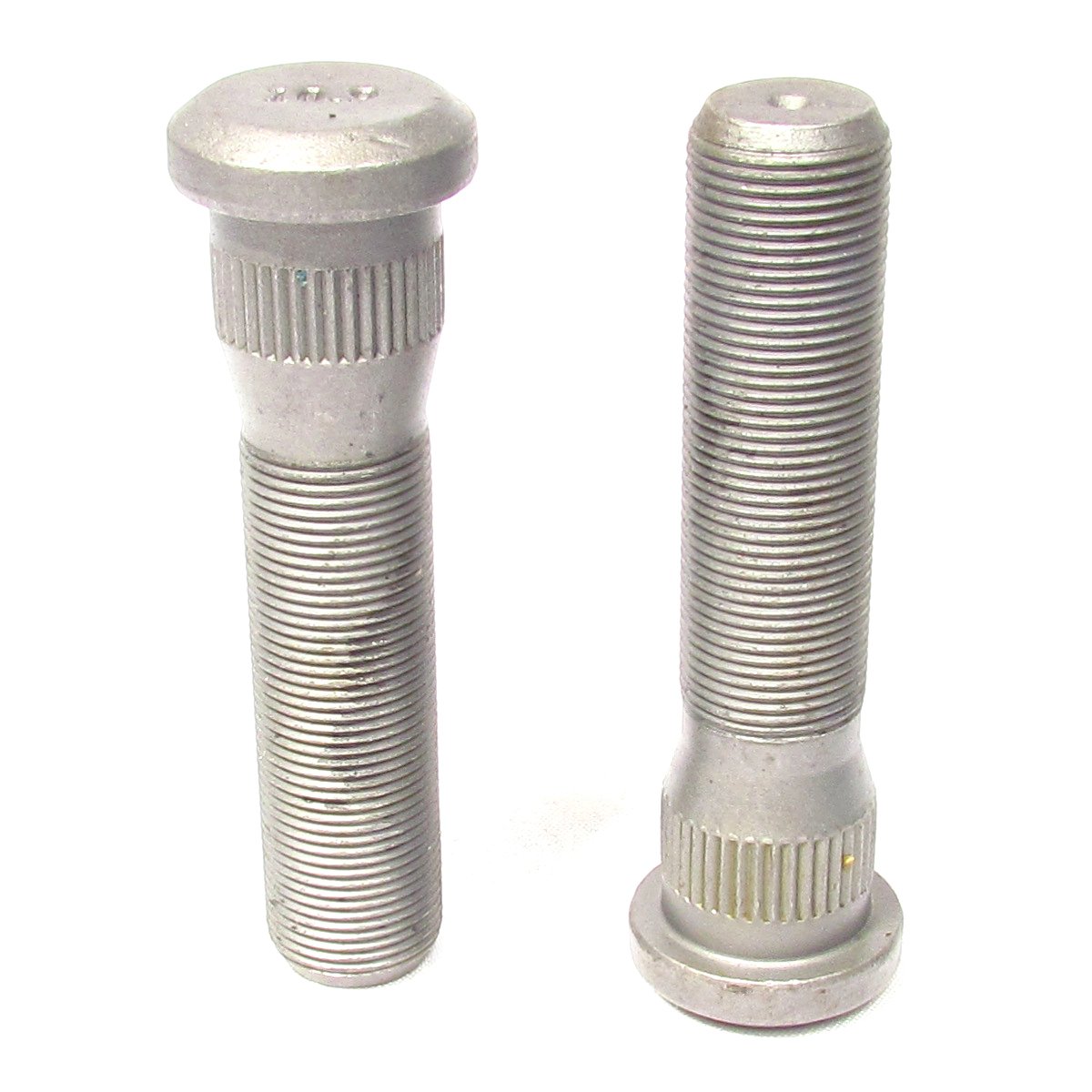

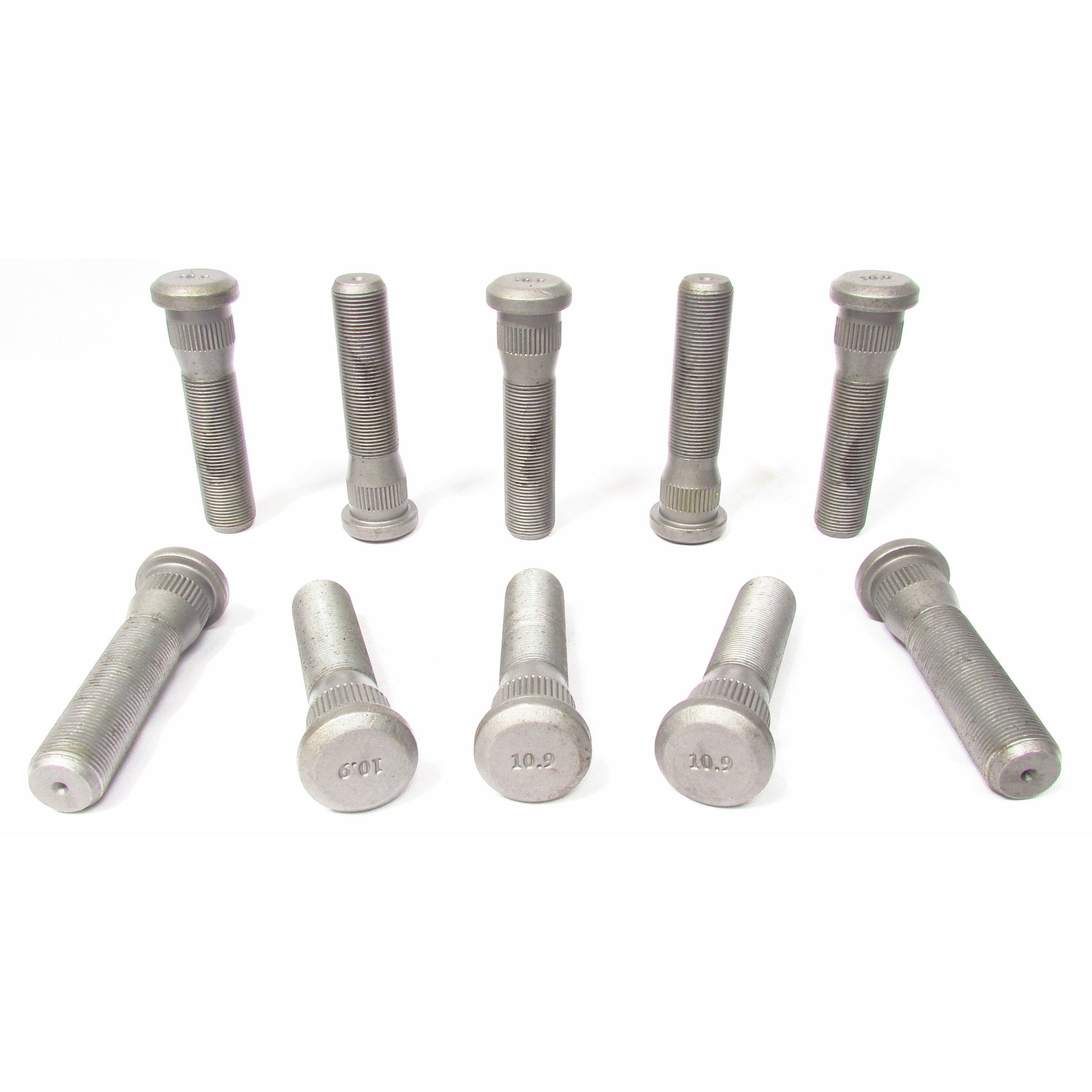

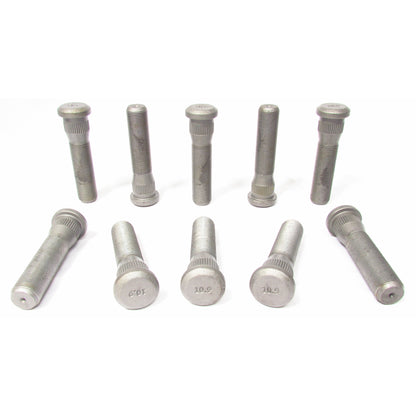

Fortpro M22 x 1.5 Metric Serrated Drive Wheel Stud F286688 designed to provide a secure hold on vehicles with M22 x 1.5 metric threads. Made from high-strength materials, these studs ensure a solid connection between the wheels and wheel hubs, improving vehicle stability and safety.

Specification

  • Brand: Fortpro
  • Part Type: Wheel Stud / Metric Serrated Drive Wheel Stud
  • Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
  • Part OEM: E6035, E-6035
  • DIN / ISO Grade: 10.9
  • Type: Headed
  • Metric Thread Size: M22 X 1.5-6g
  • Body Length (E): 0.72"
  • Body Diameter (G): 0.975"
  • Length from Under Head (B): 3 15/16"
  • Head Diameter (F): 1.31"
  • Head Style: Round
  • Head Thickness: 0.36"
  • Thread (A): M22 x 1.5
  • Thread Diameter (H): 22.0 mm
  • Wheel End Thread Direction: RH (Right Hand)
  • Threads per Inch: 1.5 per mm
  • Thread Length (C): 2.19"
  • Serration: Serrated
  • Serration Length (D): 0.41"
  • Serration Diameter: 1.015"
  • VMRS: 018-003-009
  • Item Package Quantity: 10
  • Notes: Grade 10.9 is the metric equivalent of Grade 8

Cross-References

  • Automann: 2016151, 2016151WE, 2016251

Dimensions

Dimension Not Available.
