Fortpro

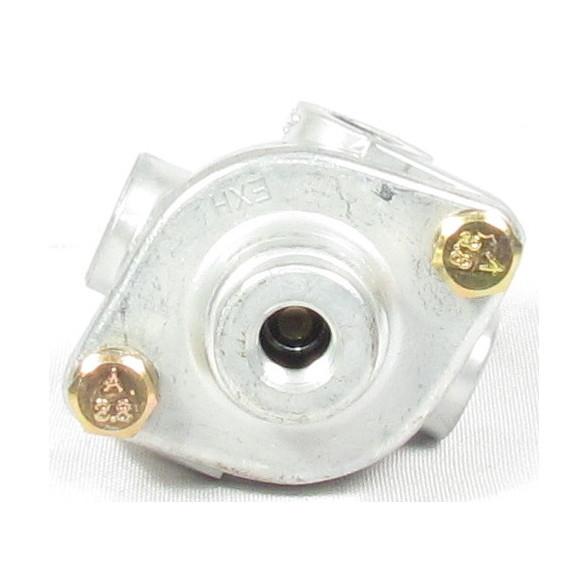

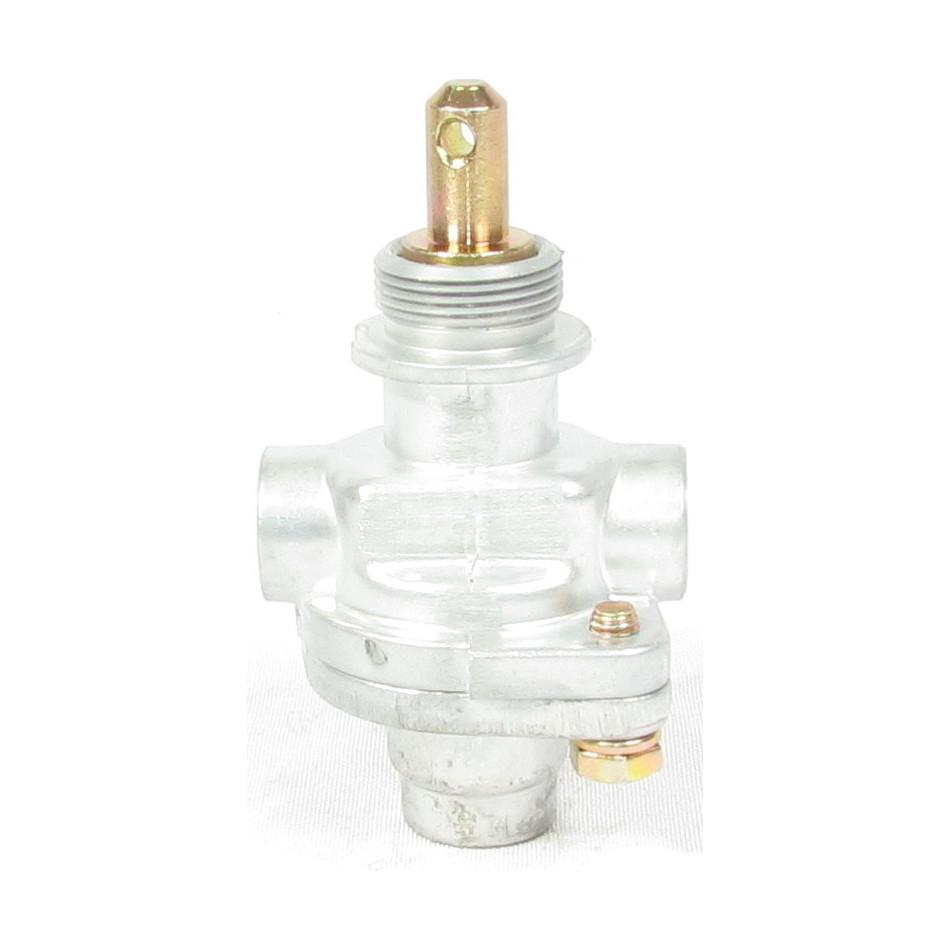

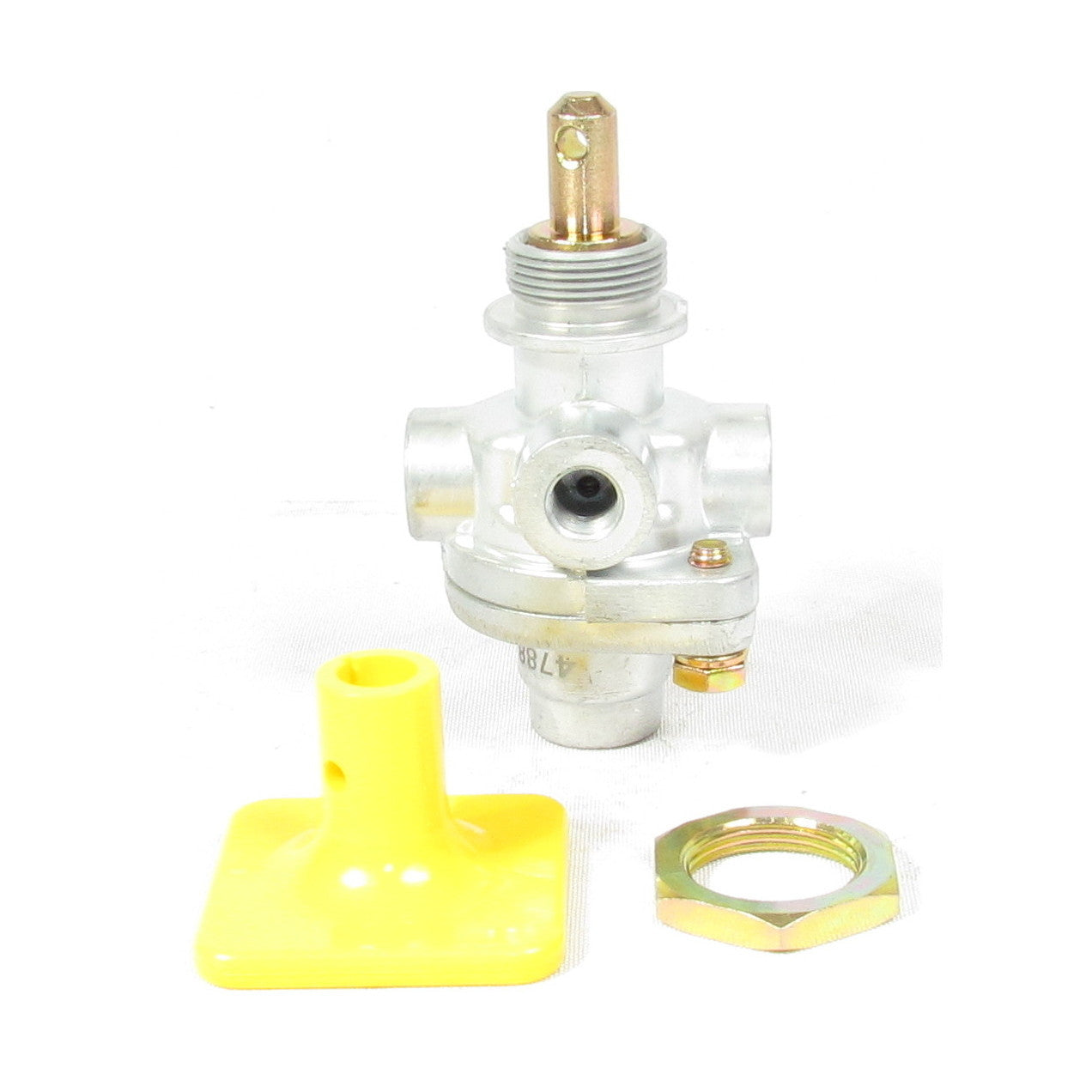

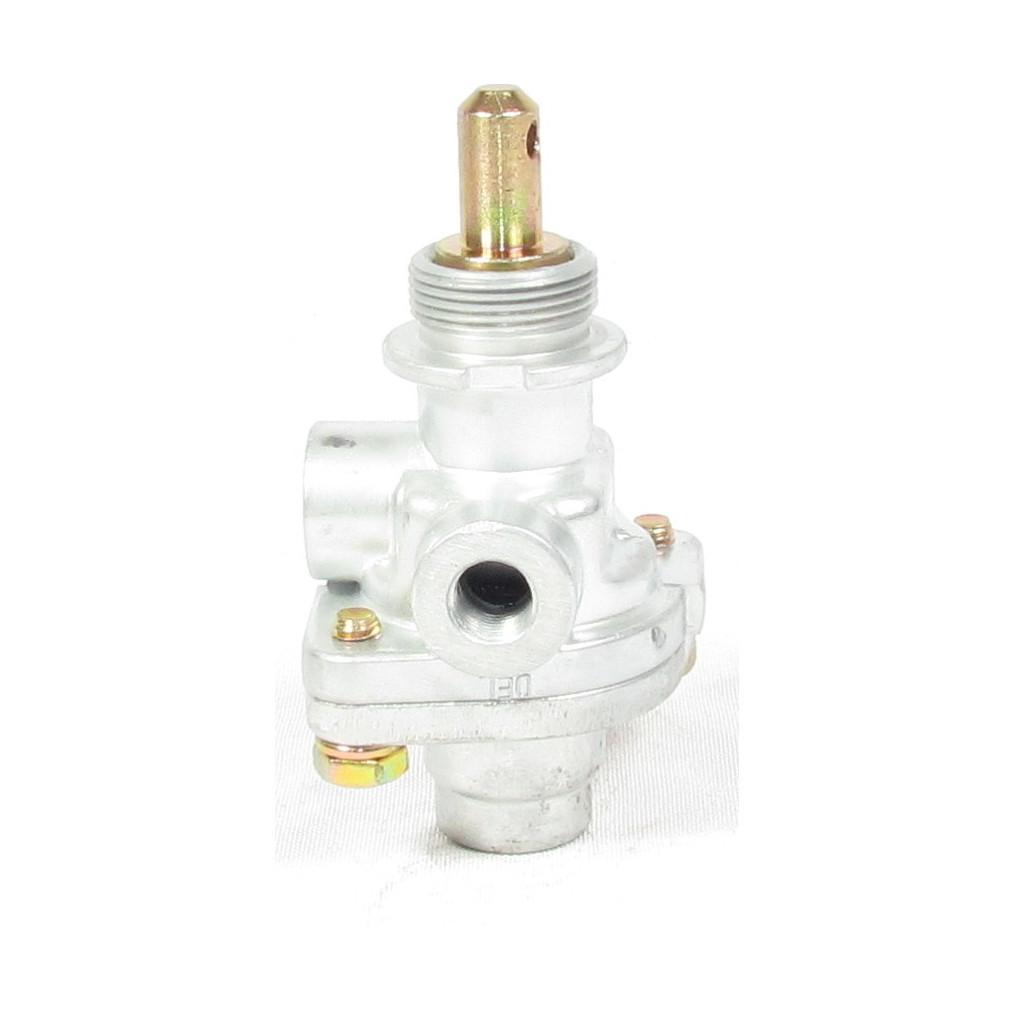

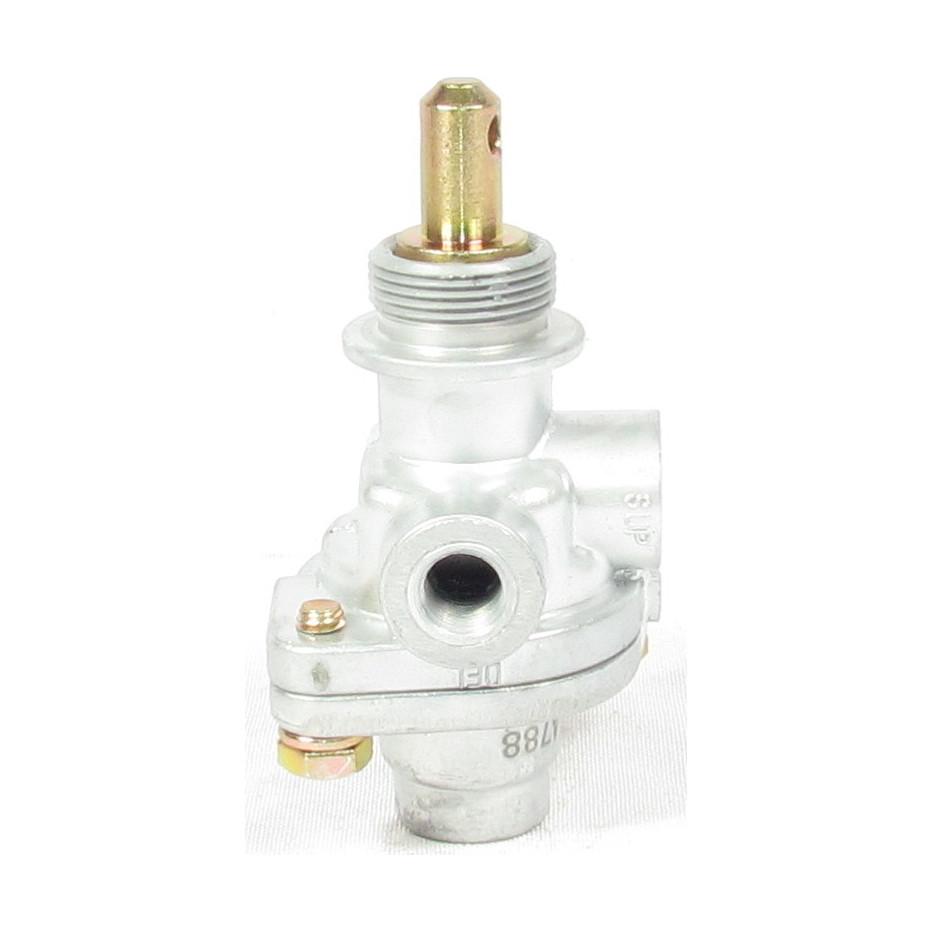

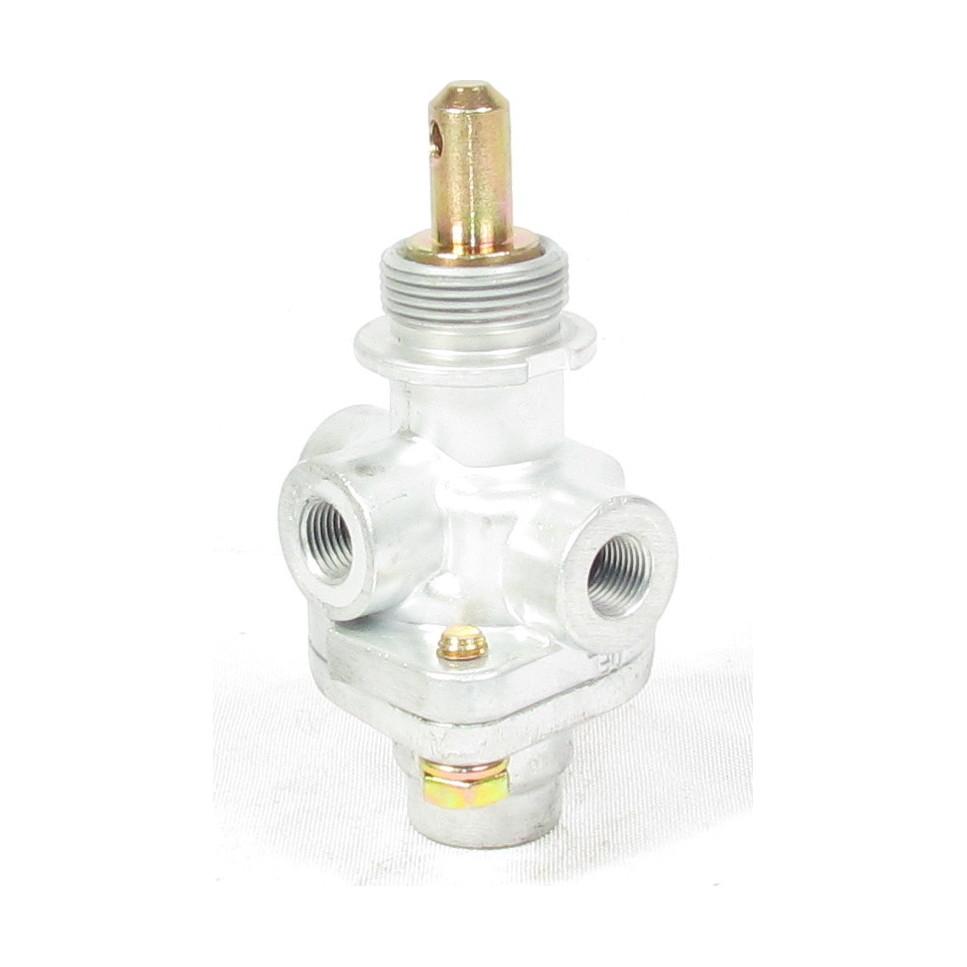

F224788 | PP-1 PUSH PULL VALVE W/KNOB | Replace 284171 | LPP-5625

F224788 | PP-1 PUSH PULL VALVE W/KNOB | Replace 284171 | LPP-5625

SKU: SKU:F224788

Inventory: More than 50 in Stock

Shipping: Calculated at Checkout

Regular price $ 18.02 USD
Regular price Sale price $ 18.02 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Policy

In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.

For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.

Return Policy

If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.

To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.

To start a return, use our Contact Form

View full details

Fortpro

Product Data Sheet

Description

Check Specification & Cross-references

Specification

  • Part 1 OEM: Bendix 276567 (PP-1 Valve)
  • Part: PP-1 Type Push Pull Valve
  • Delivery Port: 1/8” P.T.
  • Exhaust Port: 1/8” P.T.
  • Supply Port: 1/8” P.T.
  • Release Pressure: 40 PSI
  • Material: Die-cast Zinc
  • Notes: Push-Pull Style
  • Part 2 OEM: Bendix 248433 (Square Knob)
  • Part: Push-Pull Knob for Parking Brake Valve
  • Color: Yellow
  • Shaft Size: 3/8"
  • Button Size: 1-3/4" square
  • Knob Markings: PULL TO APPLY PARKING BRAKE PUSH TO RELEASE
  • Knob Mounting Nut Included: Yes
  • Material: Heavy Duty Plastic (EGC-Engineering Grade Composite)
  • Notes: Designed for use with Pin Type Push-Pull Valves

Cross-References

  • Bendix: 284171
  • Haldex: KN20021, N20960
  • Mack: 745-284171
  • Meritor: RKN20021

Dimensions

Dimension Not Available.
