F276098 | YOKE, TUBE DAN6.5-28-117
F276098 | YOKE, TUBE DAN6.5-28-117
SKU: SKU:F276098
Out of stock
Shipping: Calculated at Checkout
Shipping Policy
Shipping Policy
In order to send your purchase, our company may use different freight companies like USPS, UPS and some 3erd Carrier Services for Oversize orders, this will not affect the final price of your order. We will send you all the information in due time.
For Free Shipping and Freight/Oversize Shipments they are some special term you may check at our Terms & Conditions page.
Return Policy
Return Policy
If for any reason you need to return a purchased item, we have a 30-day return policy, which means you have 30 days after receiving your item to request a return.
To be eligible for a return, your item must meet the conditions established in our Terms & Conditions.
To start a return, use our Contact Form.
Couldn't load pickup availability
Share
Fortpro
Product Data Sheet
Description

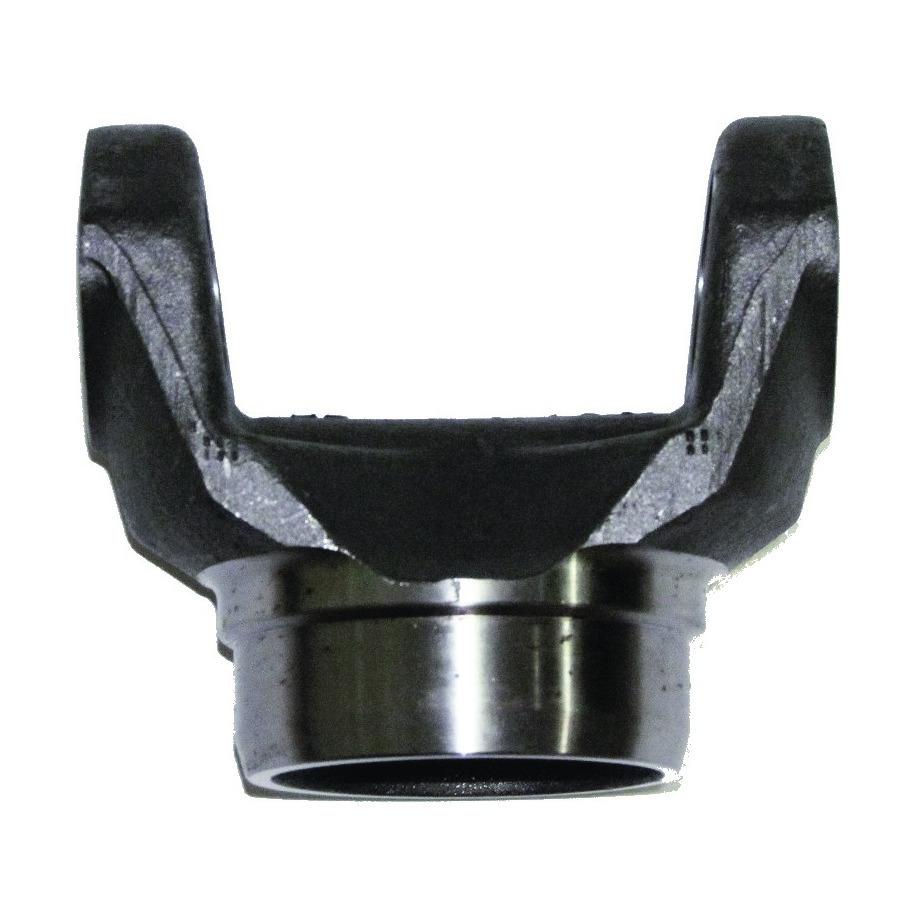

Discover the robustness of the Fortpro Drive Shaft Tube Weld Yoke 1810 Series, ideal to replace the 6.5-28-117 model. Built to withstand the rigorous demands of your fleet, this weld-on yoke offers a secure, durable connection between driveshaft and tube. Manufactured from premium materials, it guarantees optimal performance and long life, reducing downtime and maintenance costs.
Specification
- Brand: Fortpro
- Vehicle Type: Semi-Trucks / Heavy Trucks
- Product Department: Transmission
- Product category : Driveline
- Part Type: Drive Shaft Tube Weld Yoke / Outside Snap Ring Tube Yoke
- OEM Reference #: 6.5-28-117
- Series: 1810
- Joint Angle #1: 30 Degrees
- Tube Diameter and Wall Size: 4.500 in. x .134 in.
- Butt Diameter: 4.243 in.
- Center Line to Weld: 3.375 in.
- Yoke Outside Diameter (O.D.): 7.547 in.
- Yoke Bearing Dimension: 1.938 in.
- Material: Steel
- Applications:
Compatible with Drive Shaft requiring 1810 series specifications and with vehicle models that originally use part 6.5-28-117
Cross-References
- Dana Spicer: 6.5-28-117
- PAI: JTY-8243
